Prestige Robinson Helicopter Parts

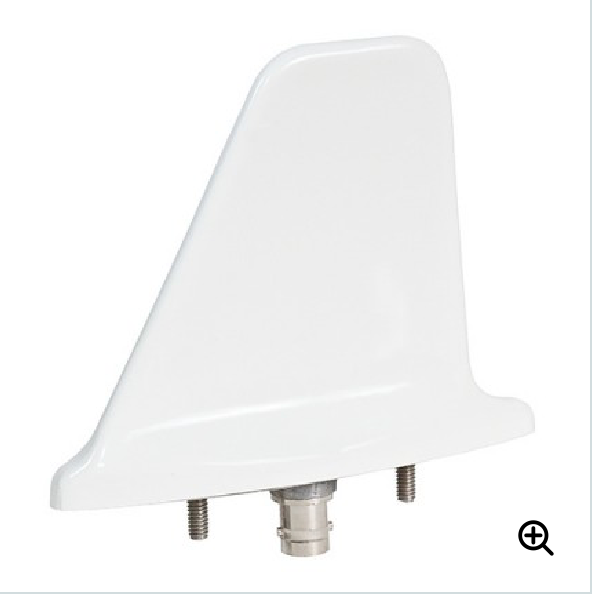

11-17965 COMANT DME / TRANSPONDER ANTENNA CI-105 FAA-TSO

Regular price $210.00
Regular price Sale price $210.00
Sale Sold out

Broadband and rugged antenna designed for DME or transponder use. Antenna assembly encased in a glass reinforced polyester molded shell. Standard two stud mounting configuration.



Specifications

MODEL CI 105 DME / TRANSPONDER
Electrical
Frequency
960 to 1220 MHz

VSWR

1.5:1 960 to 1220 MHz
1.3:1 1030 to 1090 MHz
Polarization
Vertical
Radiation Pattern
Equivalent to 1/4 wave stub
Impedance RF
50 Ohms
Resistance DC
Open Circuit
PowerRF
2.5 KW Peak
Mechanical
Weight

0.24 lb. Maximum

Height
3.23 in. Maximum
Material
Molded Radome
Finish
Polyurethane Enamel
Environmental
Temperature
-54ºC to +55ºC
Altitude
70,000 ft.
Air Speed
400 Knots TAS at 25,000 ft.
Federal Specification
RTCA Environmental
DO-160C
FAA TSO
C66a, C74c
